4K 8MP POE NVR With 11.6-Inch Monitor H.265 Network Video Recorder For Security Camera System, 4CH, 8CH

1. Supports H.265 intelligent encoding technology.
2. Supports 8MP HD network video preview, storage, and playback.
3. Supports centralized management via PC client and remote monitoring via mobile app; supports P2P internet functionality for one-click video configuration.
4. Compatible with third-party network cameras that comply with standard ONVIF and RTSP protocols.
5. Supports simultaneous VGA/HDMI output, with HDMI resolutions reaching up to 4K.
6. Supports ultra-long-distance PoE power supply and data transmission (up to 250 meters).
7. Supports 1 SATA interface with a maximum single-disk capacity of 6TB; supports custom boot screens; supports 12 languages.
8. Supports IEEE 802.3af/at standard power supply protocols; supports intelligent detection of PD (Powered Device) receivers and system-level overload protection.
9. Supports multiple stable voltage power supply modes (via pins 1236 or 4578).
10. Supports NTP, SADP, Email, and UPnP network protocols and services.

Parameters:
1. Video Compression Format: H.265
2. Operating System: Embedded Linux
3. Output Mode: IPC Adaptive
4. Video Input: 4-channel 8.0MP / 10-channel 8.0MP (8 POE + 2 Network)
5. Video Output: 1 x HDMI, 1 x VGA (Simultaneous Output)
6. Audio Output: 1 x 3.5mm Interface (Synchronized with HDMI Audio Output)
7. Video Resolution: 4 x 8M / 10 x 8M
8. Synchronous Playback:
–4K (1-channel) / 5M (1+1) / 1080P (4-channel)
–4K (1-channel) / 5M (1+1) / 1080P (4+1)
9. Recording/Snapshot Modes: Manual, Scheduled, Motion Detection, Alarm Recording
10. Playback Modes: Time-point Search, Calendar Search, Event Search, Channel Search, Face Search
11. Backup Modes: Network Backup, USB External Drive, USB Burn, SATA Burn
12. Hard Drive: 1 x SATA Interface (Supports up to 14TB)

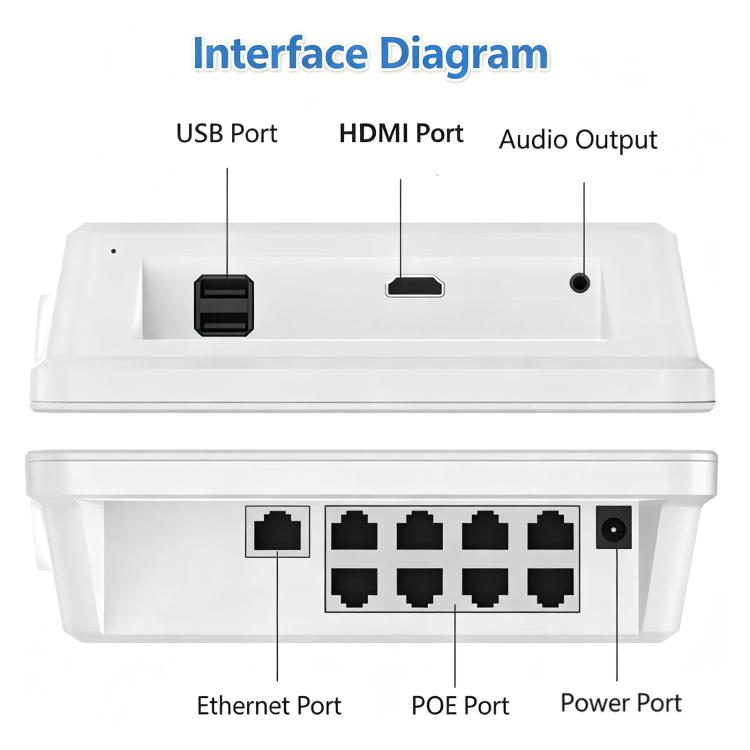

13. External Interfaces:
–Network Interface: 1 x RJ45 (10M/100M Adaptive)
–POE Interfaces: 4 x RJ45 (10M/100M Adaptive) / 8 x RJ45 (10M/100M Adaptive)
–USB Interfaces: 2 x USB 2.0 Ports
14. Network Protocols: ONVIF, IPv6, UPnP, NTP, SADP, PPPoE, DHCP, etc.
15. Power Input: DC 52V / 1.5A
16. Power Consumption (Excluding HDD): Less than or equal to 15W
